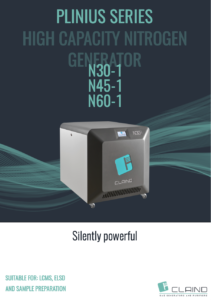

PLINIUS SERIES

OUTPUTS: NITROGEN & COMPRESSED AIR  FLOW RATE

PLINIUS N30-1

N2 : Up to  30 Nl/min      AIR : up to 32 l/min

PLINIUS N45-1

N2 : Up to  45 Nl/min      AIR : up to 40 l/min

PLINIUS N60-1

N2 : Up to  60 Nl/min      AIR : up to 70 l/min

OUTPUTS: NITROGEN & COMPRESSED AIR  PRESSURE

6 ÷ 8 bar

OUTPUTS: NITROGEN & COMPRESSED AIR  PURITY

N2 : Up to 99,9%     AIR : ISO 8573-1 Class 1.7.1

AIR COMPRESSOR

Built-in Oil free compressor

ELECTRICAL SUPPLY

PLINIUS N30-1

230 Vac ± 10% 50 Hz  900 W

PLINIUS N45-1

230 Vac ± 10% 50 Hz  1800 W

PLINIUS N60-1

230 Vac ± 10% 50 Hz  1800 W

PROTECTION INDEX

IP20

NOISE

PLINIUS N30-1

Minimum: 50 dBA    Medium: 58 dBA

PLINIUS N45-1

Minimum: 50 dBA    Medium: 60 dBA

PLINIUS N60-1

Minimum: 50 dBA    Medium: 58 dBA

OPERATING TEMPERATURE

5°C - 35°C/40°F - 100°F

STORAGE TEMPERATURE

5°C - 50°C/40°F - 125°F

ENVIRONMENTAL HUMIDITY

max 90% without condensation

MAX ALTITUDE

Up to 2000 m from the sea level

DIMENSIONS

L x D x H cm 72,5 x 89 x 80,5      28,5” x 35” x 31,7”

WEIGHT

PLINIUS N30-1

130 kg/287 lbs

PLINIUS N45-1

150 kg/330 lbs

PLINIUS N60-1

160 kg/352 lbs

THERMAL DISPERSION

PLINIUS N30-1

1000 J/sec

PLINIUS N45-1

2000 J/sec

PLINIUS N60-1

2000 J/sec

PNEUMATIC CONNECTIONS

Nitrogen and Air outlet G1/2” female

Condensate drain plastic pipe Øe 6 mm

ELECTRICAL CONNECTION

1,6 mt power supply cable with Standard connections IEC320 C20

DATA CONNECTOR

Ethernet , MOD- BUS over TCP data communication protocol; RJ45 cable – WiFi

WARRANTY

2 years from Delivery
